HYDRATILT HYDRAULIC DOORS

Self Supporting Tilting Hydraulic System

HydraTilt hydraulic doors, also known as tip up canopy doors, are custom designed to fit each application. They are self-supporting and offer a wide range of options and modifications.

HydraTilt Hangar Door System

Benefits of HydraTilt Hydraulic Doors

  • Bolt-together installation reduces the design requirements on host structure.
  • Tilt-up canopy style door offers more room in front of the hangar ramp.
  • Includes locking pins for safety, both when closed and during maintenance.
  • CNC automated fabrication means zero defects.
  • Fast delivery times for standard sizes.
Lift Icon
lift system

Hydraulic Cylinder

Door Size Icon
Maximum Door Size

60′ Wide, 18′ Tall

Panel Icon
Number of Panels

Single Panel

Hangar Doors is our passion…

For 39 years we have been leading the way and forging new territory.

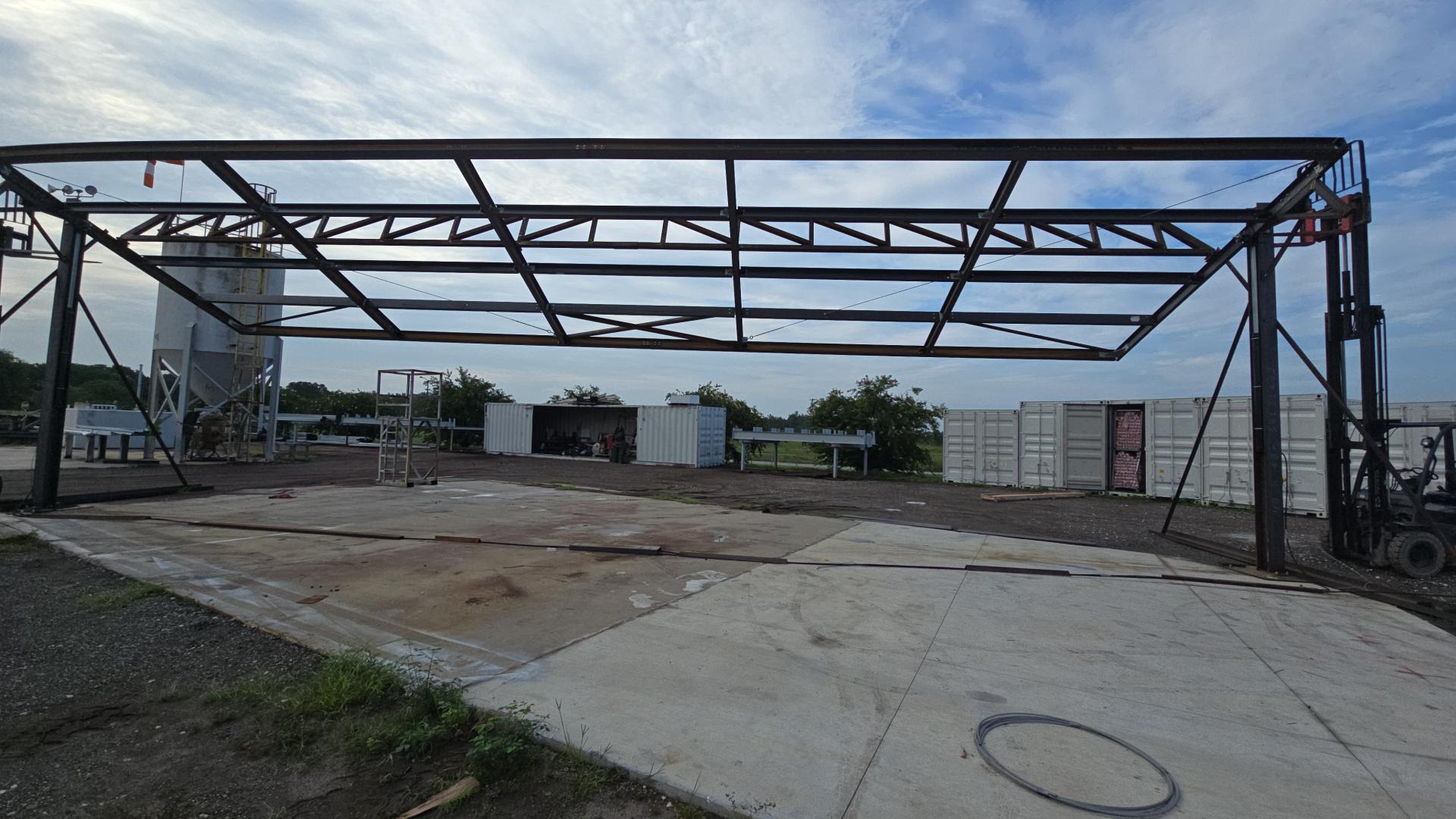

HydraTilt Single Panel Hydraulic Door Frame Lifting

HydraTilt Hydraulic Door System Features

  • Door frames use tracks and permanently mounted rollers to
    guide the door open and closed.
  • Exterior truss system is factory-welded to prevent water intrusion.
  • Door panels are fabricated from tubing using standard structural
    shapes such as “C”s and “Z”s.
  • Doors are secured to the structure floor with cold roll drop pins.
    Placement and quantity vary for each project depending on door size.
  • Weather seals at the top, bottom and side provide excellent weather protection.
    Seals are easily replaceable over time.
  • Hydraulic devices like pumps, actuators, valves, reservoirs and rams are selected
    for safety and designed for each specific project.
  • Door panels are primed with either red oxide or gray industrial primer,
    depending on steel used.
  • Control panels are watertight and enclosed in NEMA 4 boxes.
    Interlocking switches control opening and closing limits.
  • Warning devices like bells, horns and strobes can be added to notify the area of the
    movement of the hangar door.
WELL BILT Industries Sign

Why Choose WELL BILT Industries?

  • Door systems are what we do. WELL BILT Industries builds the finest doors at
    competitive pricing and is able to meet the challenges of delivering on time.
  • We are a nationwide provider and we export around the world. We are equipped
    with engineering certificates for all 50 states as well as the Caribbean.
  • WELL BILT Industries designs and fabricates to your design parameters. No project
    is too large or small for us.
  • WELL BILT Industries can provide upfront design parameters as well as specify the product
    for Architects, Engineers as well as Construction Managers in the planning phase.
  • All doors are quality constructed and come with up to a 5-year warranty.
  • WELL BILT Industries engineers constantly improve designs to provide a long term solution.
  • On-site Inspections and commissioning are available direct from our factory.

The HydraTilt Door Structure

Designed to meet your specific needs, HydraTilt hangar doors are ensured to operate as specified with a tight fit to the building to prevent warping and sagging of members. A one-piece upward swinging door allows for thermal movement and prevents the door from buckling under ambient and/or surface temperatures. The door can be operated between -30 and 140 degrees Farenheit. Each door is also engineered to operate within the wind pressures of its geographic region.

HydraTilt Hangar Door Specifications

HydraTilt Lift System

The HydraTilt hydraulic door system is an upward tilting door that pivots on side-mounted hydraulic cylinders at the mid point of the door system. Doors are actuated by means of twin hydraulic ram cylinders working in sequence and are powered by electric motors. Depending on the door size, electric motors range from 120v, 208v, 230, or 460v in single and 3 phase.

HydraTilt hangar doors are controlled by means of constant pressure push buttons operated either remotely or via mounted interior panel. Push buttons stop the movement of the door when pressure is released.

HydraTilt Hangar Door Construction
Passion Icon

Passion

At WELL BILT Industries, hangar doors are our passion. We’ve led the way in hangar doors for nearly 40 years and It’s in our blood and steel courses through our veins. Bringing you an optimized product is what drives us every day.

Innovation Icon

Innovation

For 39 years, we have been leading the way in hangar dors and forging new territory. We are constantly innovating and improving existing designs to ensure that our customers have the best possible hangar doors available on the market.

Shield Icon

Safety

Well Bilt Industries values both superior quality and customer safety. We’ve implemented several key features that make the new HydraTilt hydraulic door system better and safer than the competition.

The HydraTilt Doors in detail

Accessories

Warning devices such as bells, horns and strobes may be added to the operation of the controls to notify the area of the movement of the Door Panel. Devices are to be located on the operation hangar wall.

Warning devices such as bells, horns and strobes may be added to the operation of the controls to notify the area of the movement of the Door Panel. Devices are to be located on the operation...
Read more

Enclosures

Control panels shall be enclosed a NEMA 4 boxes to allow for water tight enclosure; installers of the electrical connections shall note to not drill into the top of the enclosure to prevent water infiltration. All conduit runs should come from the bottom of the enclosure when practical.

Control panels shall be enclosed a NEMA 4 boxes to allow for water tight enclosure; installers of the electrical connections shall note to not drill into the top of the enclosure to prevent water infiltration. All...
Read more

Door Frames

Shall consist of a minimum of ¼” Channel; Header system of the frame may be spliced material depending on the width of the door system. The side of the frame will consist of full pieces not spliced unless the length required exceeds the available material. Splices shall be made in the field of the material using a socket system to insure proper fit and finish by installers.

Shall consist of a minimum of ¼” Channel; Header system of the frame may be spliced material depending on the width of the door system. The side of the frame will consist of full pieces not...
Read more

Wind and Locking Pins

Each door panel shall be fitted with a cold roll drop pin located in the door panel for securing the door to the finished floor. Depending on the size of the door system pin placement and quantity will vary per the engineering.

Each door panel shall be fitted with a cold roll drop pin located in the door panel for securing the door to the finished floor. Depending on the size of the door system pin placement and...
Read more

Exterior truss system

(When Necessary) shall be fully welded to prevent water intrusion. Truss shall be designed as a welded member with the door panel and factory welded.
Read more

Hydraulic devices

Hydraulic devices such as pumps, actuators, valves, reservoirs and rams shall be of sufficient size and design to lift the load with a safety factor built into the design.

  • a. Pumps to be capable of a duty cycle no less than 200% of the required run time.
  • b. Reservoir to be capable of handling 125% of the required fluid required to fully extend the hydraulic rams.
  • c. Actuators shall match the system requirements for remote system use.
Hydraulic devices such as pumps, actuators, valves, reservoirs and rams shall be of sufficient size and design to lift the load with a safety factor built into the design. a. Pumps to be capable of a...
Read more

Contactors and Controls

Each system to be designed for the application and size of the HYDRA-EZE Hydraulic hangar door system. Systems shall include reversing contactors, operation control buttons that open, close and stop the system. System will allow for contactors to be interlocked with limit switches for opening limits and closing limits. Interlocks for personnel door when applicable.

Each system to be designed for the application and size of the HYDRA-EZE Hydraulic hangar door system. Systems shall include reversing contactors, operation control buttons that open, close and stop the system. System will allow for...
Read more

Motors

Electric Motors will be sized according and power systems requirements shall match the architects phasing of the electrical system. Fusing of the system will be at the discretion of the design professional.
Read more

Electric Operators

Electrical Distribution: Contractor shall supply power to the hydraulic pump motor control enclosure.
Read more

Weather Stripping

(Sides, Top & Bottom)Provide weather stripping that is easily replaceable on the horizontal bottom and vertical edges of the door. Material shall be EPDM with cloth insertion and be attached 12” O.C. The installer will insure that the top weather seal is installed properly per the manufactures instruction.

(Sides, Top & Bottom)Provide weather stripping that is easily replaceable on the horizontal bottom and vertical edges of the door. Material shall be EPDM with cloth insertion and be attached 12” O.C. The installer will insure...
Read more

Door Panel

Manufacture from Tubing and standard Structural shapes such as “C”‘s & “Z”‘s. Panel framing shall be fabricated utilizing CNC drill and shaping lines and test fit in the shop to insure the door can be assembled in the field. Door panel shall be designed to have exterior panel connection for standard PBR Panel design conditions.

  • i. Bolting conditions shall be designed for the bolted connection to provide full strength connection of material size and shape being used.
  • ii. Welded portions of the door shall also be per AWS D1.1
Manufacture from Tubing and standard Structural shapes such as “C”‘s & “Z”‘s. Panel framing shall be fabricated utilizing CNC drill and shaping lines and test fit in the shop to insure the door can be assembled...
Read more

Track and guide rollers

Door system shall be equipped with a integral track in the door frame and columns with permanently mounted rollers at the upper most portion of the door for the tracks to roll on.
Read more

Primer

Red Oxide, Gray industrial primer, SSPC 25 over prepared surface by means of blasting or surface wire wheel depending on the quality of steel.
Read more
