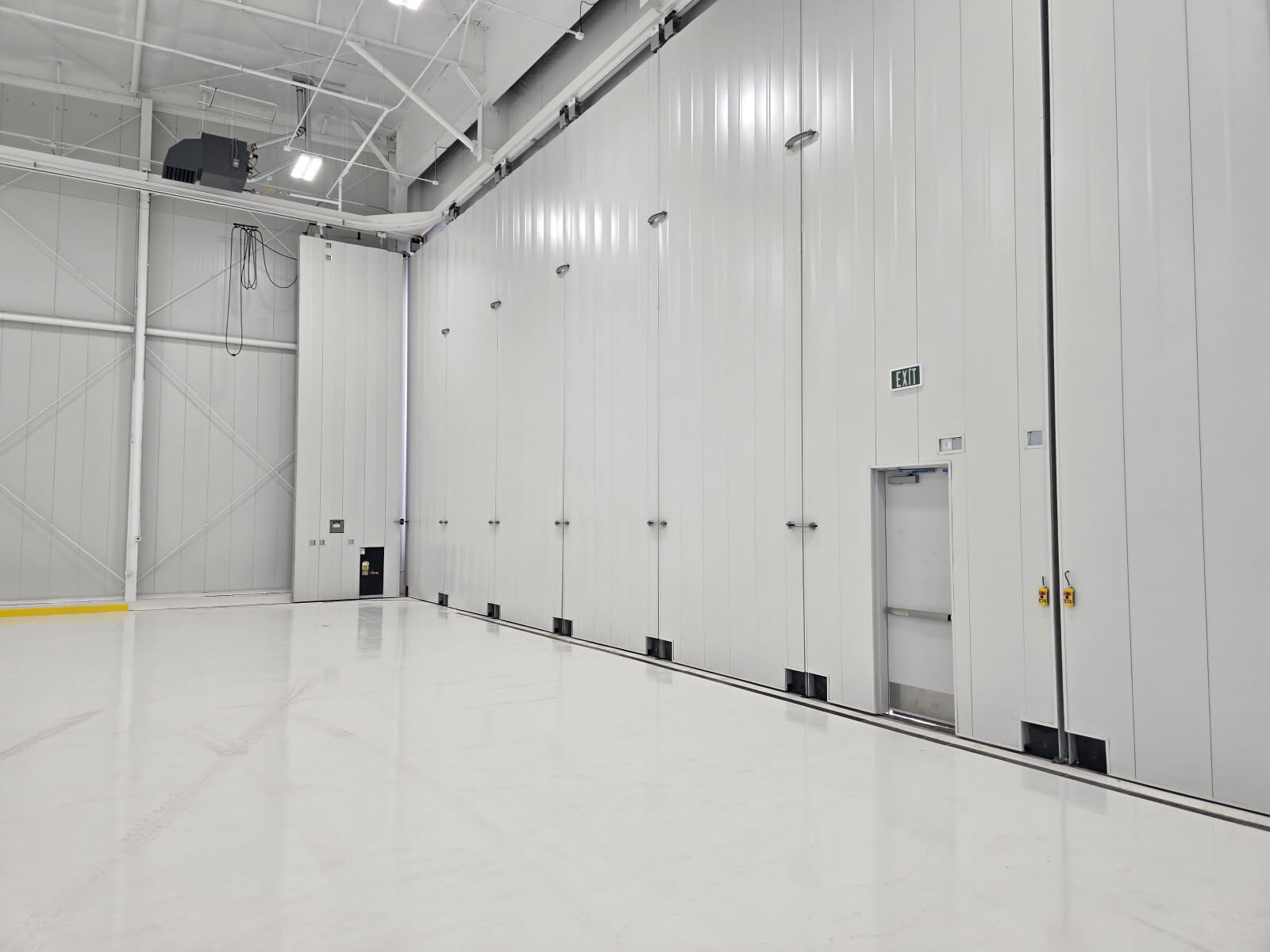

Well Bilt Doors supplied and engineered seven Slide N’ Hide™ 90° bi-parting tall door systems for Centennial Airport in Englewood, Colorado. The project includes three 90′-0″ wide x 29′-0″ tall systems and four 110′-0″ wide x 29′-0″ tall systems, all designed to meet a 115 MPH Exposure C wind load with a 1.0 importance factor. Each system is built to a L/240 enclosed condition and accommodates deflection tolerances of 1.5” upward and 2” downward.
The doors are equipped with our Zeus 200 Series steel wheel drive system, featuring 2 HP, 208V, 3-phase motors with VFD and PLC control for smooth operation and a travel speed of up to 45 feet per minute. Casters are fully swiveling with double flange plate steel and 9” machined treads. Track systems include 30# ASCE bottom rail with leveling bars and telescoping top guides to handle specified deflection.
Panels are constructed from hot rolled sections with field-installed light gauge girts for exterior cladding. Each system ships knocked down for field assembly, complete with EPDM weather seals, aluminum brush head seals, primed or galvanized steel components, and hardware rated to A325 or Grade 5. All engineering is signed and sealed by a state-registered engineer, with full shop drawings and calculations provided for contractor review.
Door Specs for This Location
We supplied a total of 7 Slide ‘N Hide door systems.
Basis of Design:
- Door systems are to be engineered to the wind load of 115 MPH Exposure C with a 1.0 importance factor.
- Door Design based upon a L/240 enclosed condition with a 1.5” upward deflection and 2” downward deflection.
- Drawings are to be signed and sealed by a registered engineer of the state the doors will be delivered to.
- Shop drawings and calculations shall be submitted for review to the contractor/purchaser and will signed by Well Bilts engineer of record.
- Detailing and assembly drawings will be shipped two weeks prior to door components being delivered.
Scope of Work:
- Bottom rail to be 30# ASCE rail over ¼” leveling bars with 13/16” holes for anchor rods.
- Casters shall be swiveling type with double flange plate steel machined to 9” treads with ¾” flanges and be capable of turning 365 degrees.
- Bottom casters shall have tapered bearings for lubrication of the moving parts.
- Top Track guides shall be capable of the 90-degree swivel and operate on sealed bearings.
- Top Guides shall be mounted on a telescopic housing for the deflection as noted above of 1.5” upward and 2” downward deflection.

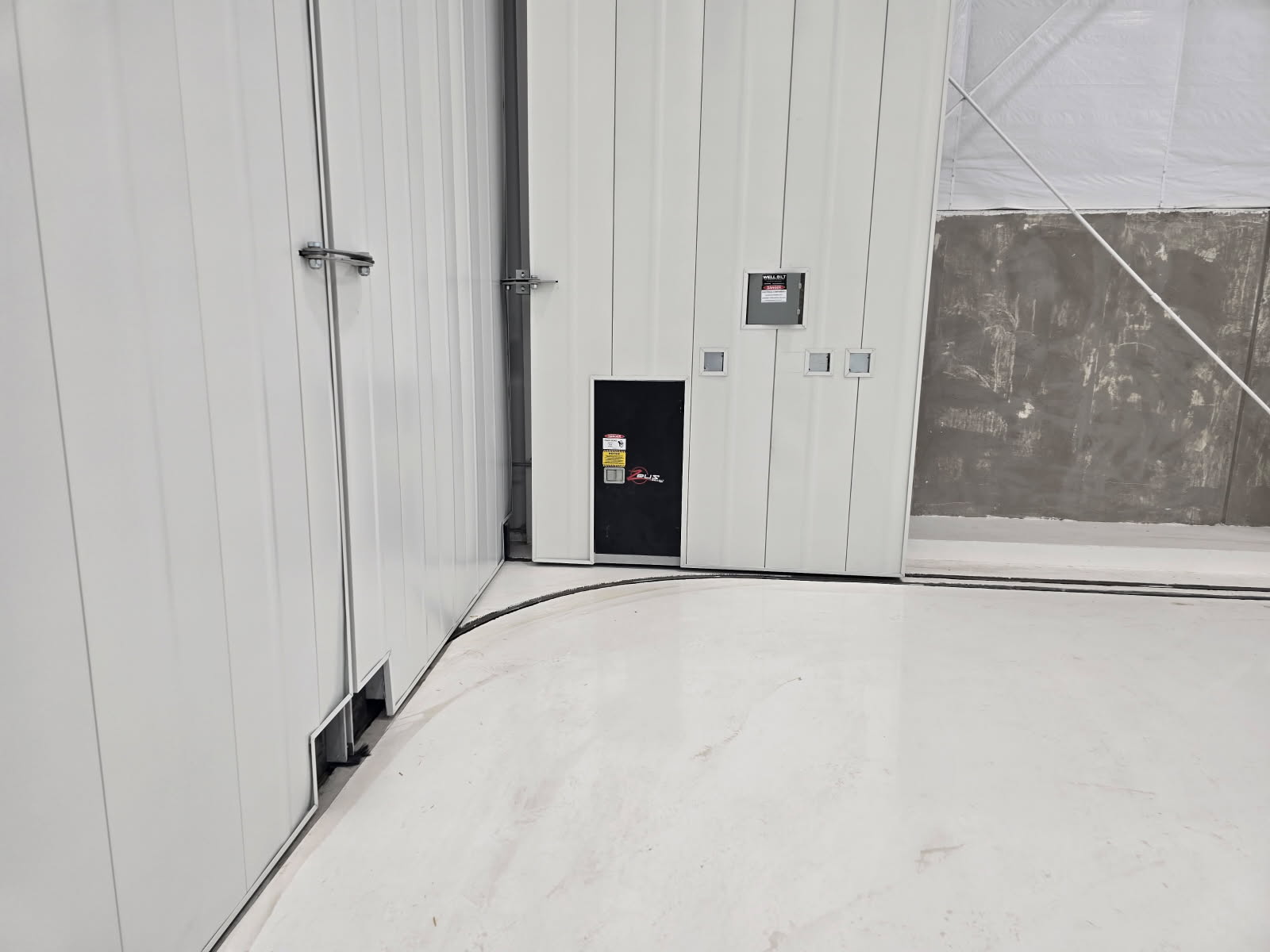

- Top track shall be fabricated with a 6” wide flange and have a radius track that matches the bottom ASCE track radius. Support for the upper track shall be supplied by others.
- Panels to be comprised of the hot rolled sections and light gauge girts in the field for exterior cladding attachment and infill.
- Doors shall be operated by Well Bilts Zeus 200 series steel wheel drive system with electric brake. Powers shall be 208 three phase 2 HP motor capable of traveling up to 45 feet per minute. Each Operator shall be equipped with a VFD and PLC for optimum performance and soft start and close functionality.
- Doors shall be shipped knocked down for field assembly.
- Weather seals between each panel shall be 1/16” EPDM with a nylon fabric insert.
- Weather seals on ends shall be 1/8” EPDM with nylon fabric insert.
- Upper seals shall be comprised of a brush seal mounted on a extruded aluminum frame to the building header.
- Steel shall be primed fab gray and or galvanized girts.
- Hardware for the connections for the members shall be Grade A325 or grade 5 minimum. Bottom Track anchor bolts or threaded rod by Well Bilt.
